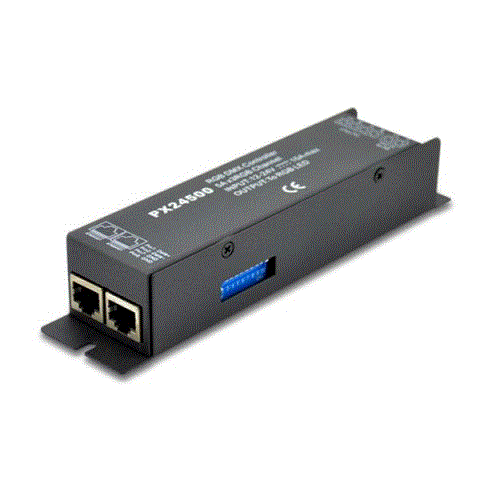

PX24500 CONTROLADOR DMX512 3 CANALES 5A/CANAL 12-24VDC RJ45 INTERFACE

Stock: 0 Und.
Ref. 111.LED989
Precio (IVA incluido) 32,186 €
Description:
High Power DMX Decoder driver
Model: PX24500 RJ45 interface
Meets DMX512/1990
Can drive 5A (Each CH)
Can drive many kinds of LED lamps

Features
Meets DMX512/1990
256-level brightness,full-color control
3 output CH.,can drive 5A(Each CH.)
With control system,can express perfect effect
Can drive 1~3 channel of each lamp
Can set the DMX addess freely
High interference resistant, over-heat and over-current protect, self- recovery function available
Decode CH.:1~3
Input Signal:DMX-512/1990 digital signal
Output Signal:0~24V PWM signal,can drive 5A(Each CH.)
Power Supply:DC,+12~24V
Power Dis.: Power Output: Operating Temp.:0~70
Size:175(mm)*45(mm)*35(mm),can be custom-made
Weight:≤300g
