Ref. 108.MD9007

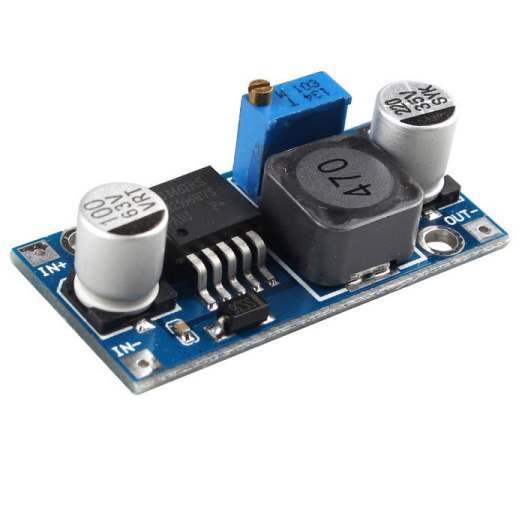

LM2596S MODULO DC-DC STEP-DOWN AJUSTABLE 4.5-40VDC/2AMP. LM2596S

Stock: 115
Ref. 108.MD9007
Precio (IVA incluido) 1,936 €
Unidades ≥ 10 ≥ 20 ≥ 40 ≥ 60
DescuentoDescuentoprecio-3%-0,0581,878-5%-0,0971,839-7%-0,1361,800-10%-0,1941,742
LM2596S Step-down Module
Size: 45 * 24 * 11mm
The input voltage: 4.5 to 40v
Output voltage: (1,5~35v) continuous adjustable (suggest no load debugging)
The lowest pressure difference: 1.5V
Output current: rated current 2A, max 3A
Output power: a maximum of 15W
Conversion efficiency: up to 92% (the higher the output voltage, the higher the efficiency)
Static power: about 6 mA
Connection mode: welding, after add pin can be directly welded on the PCB
Working temperature: industrial grade (- 40 to + 85 )
Load regulation: ± 1%
Voltage regulation: ± 0.5%
Short circuit protection: current limiting, overheating protection

Input Voltage 4.5~40V
Output Voltage 1.5~35V
Max. Output Current 3A
Max. Output Power 15W
Working Temperature -40~+85℃
Conversion Efficiency 92%
