Ref. 108.MD9062

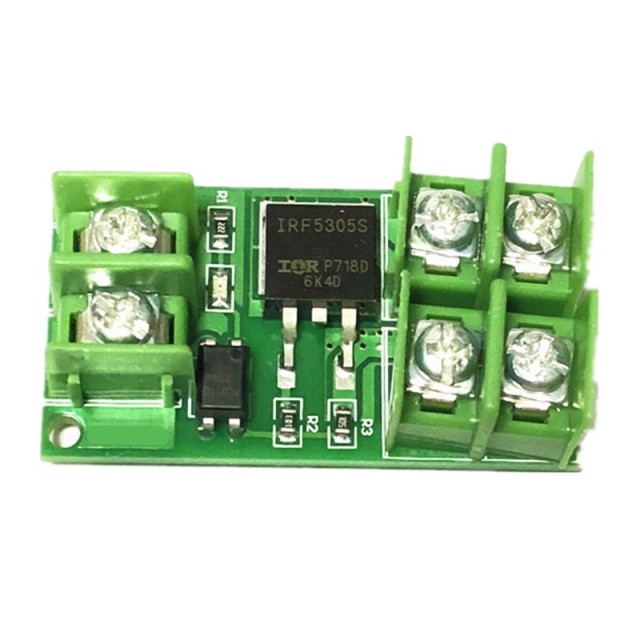

MODULO MOSFET IRF5305 PARA DC CONTROL DE LUCES, MOTORES, ETC.

Stock: 50
Ref. 108.MD9062
Precio (IVA incluido) 1,815 €
Unidades ≥ 10 ≥ 20 ≥ 30 ≥ 40
DescuentoDescuentoprecio-3%-0,0541,761-5%-0,0911,724-7%-0,1271,688-10%-0,1821,634
product description:

1: FET module, the input and output are completely isolated.

2: Signal trigger terminal: digital high and low level. Can be connected to the microcontroller IO port, PLC interface, DC power supply, etc.

3: Input signal voltage: 3V~24V; current: about 5ma.

4: The output can control high-power equipment, motors, bulbs, LED strips, DC motors, micro pumps, solenoid valves, etc.

5: Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add heat sink, the maximum can not exceed 20A.

6: Using the original F5305S power FET, you can input PWM, control motor speed, brightness of the lamp, etc.
