Ref. 108.MD9199

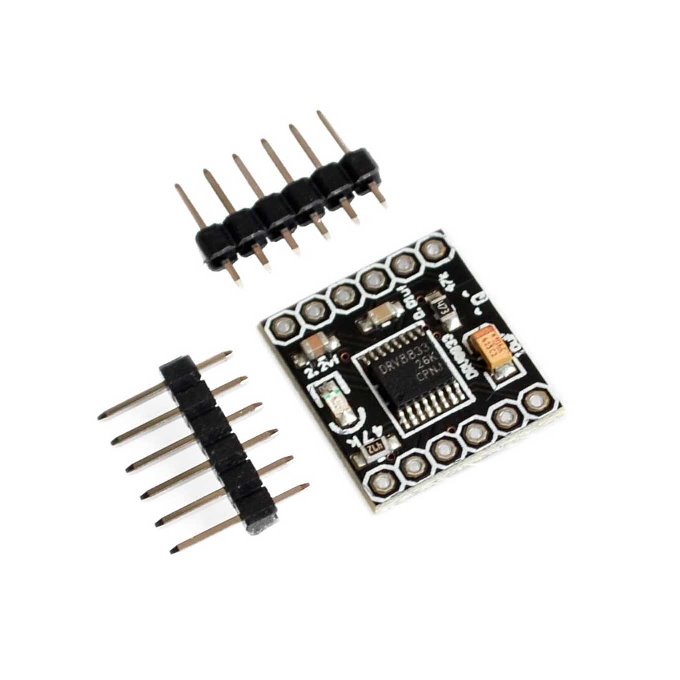

MODULO DRV8833 DC MOTOR DRIVE 2 CANALES

Stock: 89
Ref. 108.MD9199
Precio (IVA incluido) 1,428 €
Unidades ≥ 10 ≥ 20 ≥ 30 ≥ 50
DescuentoDescuentoprecio-3%-0,0431,385-5%-0,0711,356-7%-0,1001,328-10%-0,1431,285
Description:
1. Size:18.5*16mm
2. Input voltage:3V-10V
3. Single H-Bridge output current:1.5A(It can drive two DC motor)
4. Overcurrent protection:YES
5. Short circuit protection:YES
6. Undervoltage lockout:YES
7. Overheating protection:YES
8. With a low-power sleep mode

Feature:
1. ULT PIN:mode set.Low level is sleep mode
2. OUT1,OUT2:1-channel H-bridge controlled by IN1/IN2
3. OUT3,OUT4:2-channel H-bridge controlled by IN3/IN4
4. EEP PIN:Output protection.Default no need to connect.
5. VCC:3-10V
6. GND

Application:
1. DC motor which drive current is less then 1.5A
2. 4-wire step motor
