Ref. 108.PT12715

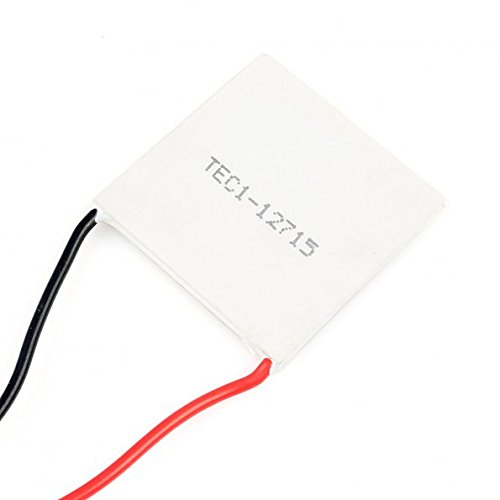

TEC1-12715 12V/15A CELULA PELTIER 40X40MM

Stock: 35
Ref. 108.PT12715
Precio (IVA incluido) 8,422 €
Unidades ≥ 3 ≥ 5 ≥ 7 ≥ 10
DescuentoDescuentoprecio-3%-0,2538,169-5%-0,4218,001-7%-0,5907,832-10%-0,8427,579
Feature:

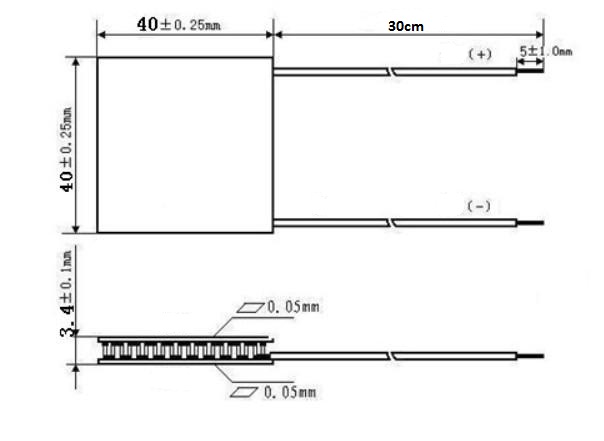

Dimensions: 40*40*3.3mm Element Logarithm 127 pairs
Wire Size: Lead Length 200±8mm RV Standard Wire Single Head 5mm Tin Plated
Internal resistance: 0.8~0.9Ω (ambient temperature 23±1°C, 1kHZ Ac test)
Maximum temperature difference: above 62°C
Operating current: Imax=15A (maximum voltage 15.5V 15A at startup)
Rated voltage: DC12V (maximum voltage: 15.5V)
Cooling power: 142W (heating surface temperature is too high will reduce the cooling power)
Assembly pressure: 85N/cm2
Working environment: Temperature range -55°C~83°C (excessive ambient temperature will directly affect the cooling efficiency)
Storage conditions: -40~60°C
