Ref. 108.MD9098/05A

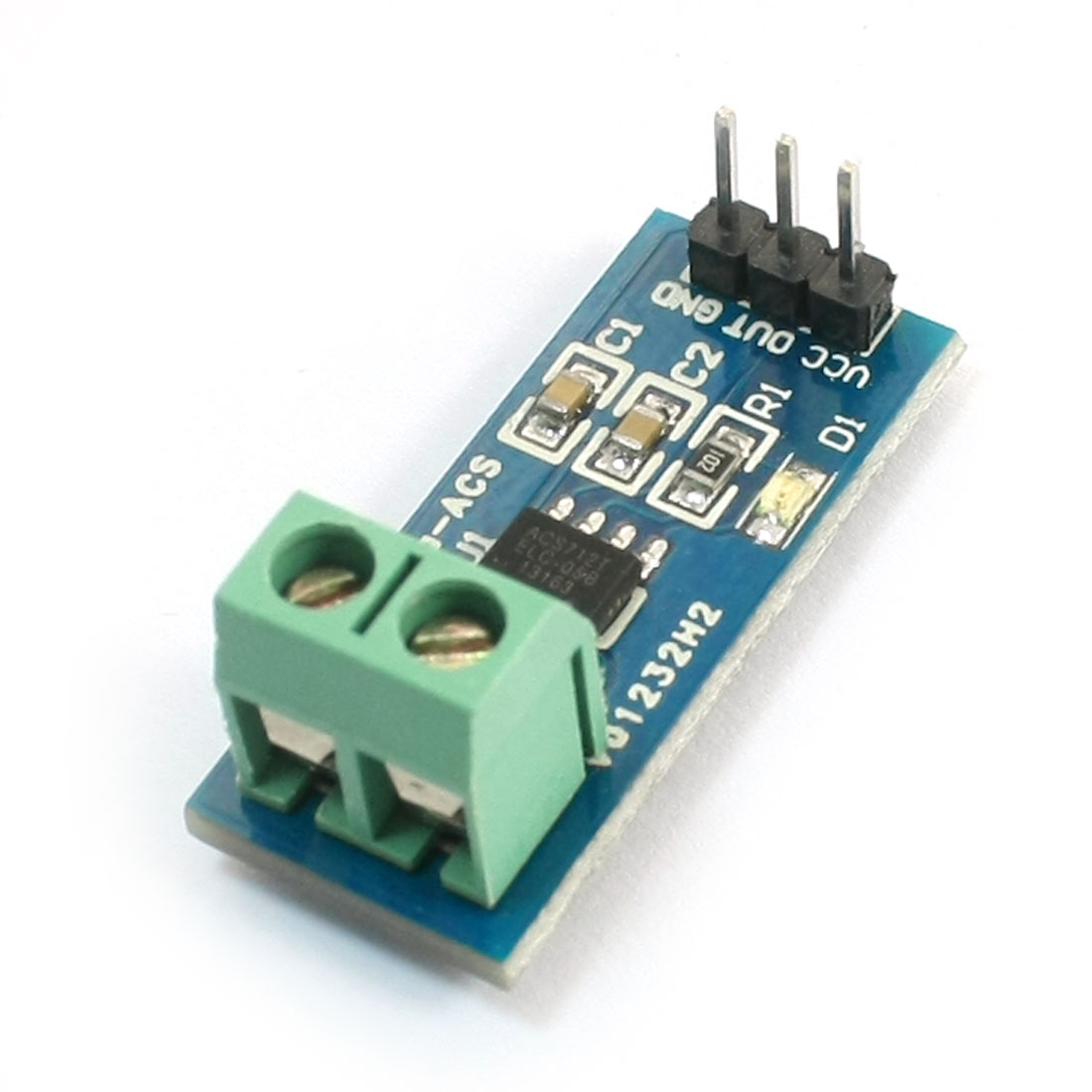

ACS712ELC-05B MODULO SENSOR HALL DE CORRIENTE DE 5 AMP.
Stock: 19 Ref. 108.MD9098/05A
Precio (IVA incluido) 2,795 €
| Unidades | ≥ 10 | ≥ 15 | ≥ 20 |
| DescuentoDescuentoprecio | -5%-0,1402,655 | -7%-0,1962,599 | -10%-0,2802,516 |
Description:

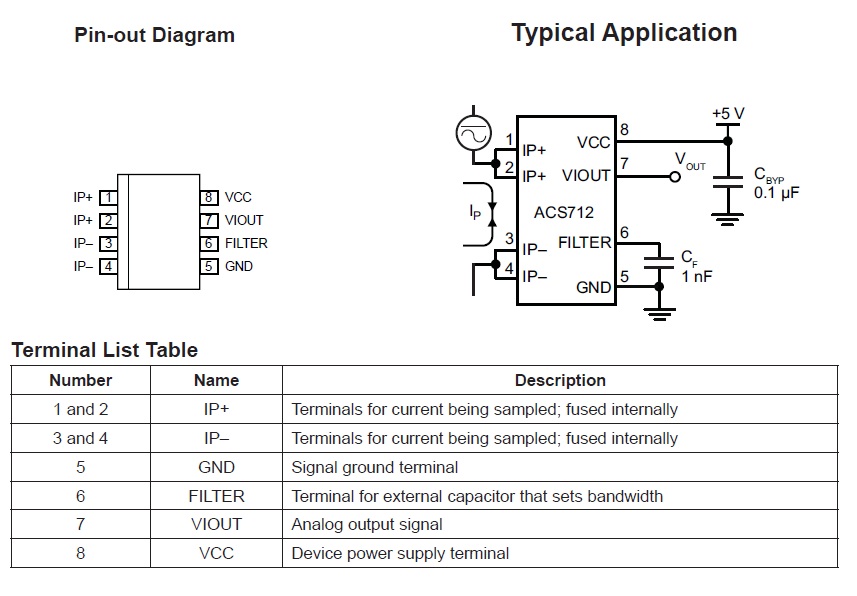

1, the current sensor chips: ACS712ELC-05B;
2, pin 5V power supply, on-board power indicator;
3, the module can be measured plus or minus 5 amps, corresponding to the analog output of 185 mV / A;
4, there is no the detection current through, the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);
1, the current sensor chips: ACS712ELC-05B;
2, pin 5V power supply, on-board power indicator;
3, the module can be measured plus or minus 5 amps, corresponding to the analog output of 185 mV / A;
4, there is no the detection current through, the output voltage is VCC / 2;
5, PCB board size: 31 (mm) x13 (mm);
