Ref. 112.HD/R712

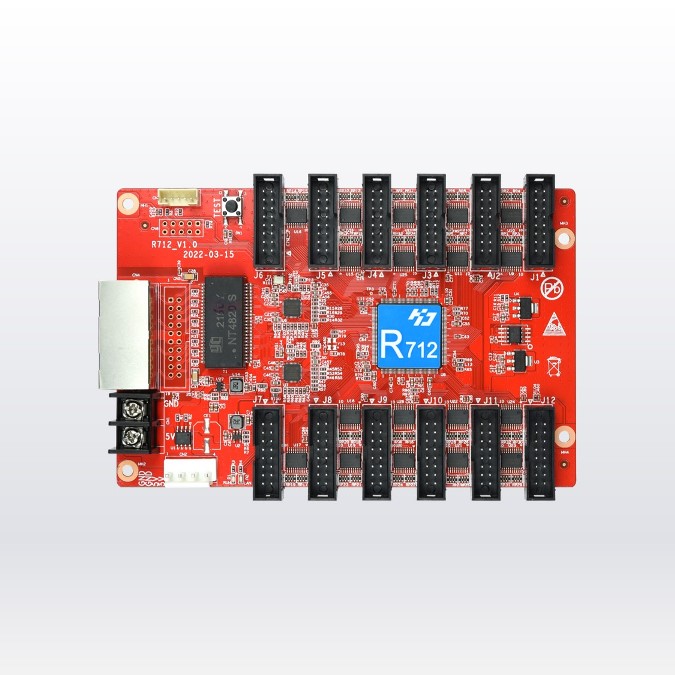

HD-R712T TARJETA RECEPTORA HD-R712 256X1024 PX (HUIDU) NUEVA VERSION DE LA R512

Stock: 18
Ref. 112.HD/R712
Precio (IVA incluido) 20,752 €
Unidades ≥ 10 ≥ 20
DescuentoDescuentoprecio-3%-0,62320,129-5%-1,03819,714
Una tarjeta R712T soporta un area de 256x1024 pixels
ESTA TARJETA ES LA NUEVA VERSION DE LA R512

Fit for sender:
A4、A5、A6、A601、A602、A603 dual mode player；
A3、A30、A30+、C10、C10C、C30、C15、C15C、C35、C35C
Asynchronous controller；
T901、T901B、T901S synchronous controller；VP210、
VP410 video processor
Module type: Compatible with all common IC module, supported most PWM
IC module.
Scan mode: Supports any scanning method from static to 1/128 scan
Communication method: Gigabit Ethernet
Multi-card connection: Receiving card can be put in any sequence
Gray scale: 256~65536
Smart setting: A few simple steps to complete the smart settings, through the
screen layout can be set to go with any alignment of the screen
unit board
Test functions: Receiving card integrated screen test function,Test display
brightness uniformity and display module flatness.
Communication distance: Super Cat5,Cat6 network cable within 146 meters
Port: 5V DC Power*2,1Gbps Ethernet port*2, HUB75E*12
Input voltage: 4V-6V
Working temperature: -40º~85ºC

Codigos alternativos: HD-R500, HD-R501, HD-R512
